Milling Machines
SKIOLD have a history of innovation and reliability and manufacture of a wide range milling machines suitable for farm to commercial installations. The range includes roller mills, hammer mills and the award winning disc mill range which is designed to allow it to be integrated into SKIOLD's automated feed mill control system. For extra reliability and safety all mills are driven by ABB, ATEX 22 rated motors.
SKIOLD Disc Mills

X

SK2500 Disc MillShow Full Screen
SK2500 with magnetShow Full Screen
SK5000 Automatic Disc MillShow Full Screen
SK5000 Manual Mills with magnetsShow Full Screen
SK10 Disc Mill with feed screwShow Full Screen
SK10 Disc Mill with magnetShow Full Screen
2x SK780 Disc Mills with feed screwsShow Full Screen
SK780 Commercial Disc Mill Show Full Screen
- For the milling of dry grains, pellets and pulses.
- Four models available: SK2500 / SK5000 / SK10T / SK780.
- Available in different motor sizes.
- Capacity 2 to 30 tonnes per hour (dry wheat or maize).
- Variable disc gap for flexible grist size.
- Can be controlled automatically.
- Low power use per tonne milled.

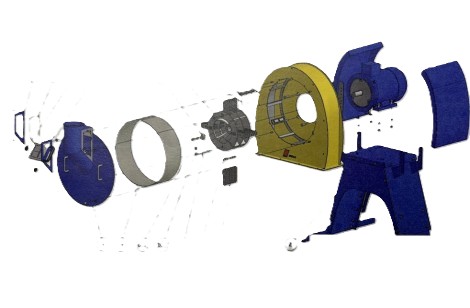

SKIOLD ‘Gravity’ Hammer Mills

X

2x SKIOLD DM-6 Mills with U-trough augerShow Full Screen
SKIOLD DM-6 with adjustable legsShow Full Screen
DM-6 Mill with magnetShow Full Screen
- For the milling of dry grains, pellets and pulses
- Two models available DM-G for grain and DM6W for ‘wet’ Maize (40% moisture)
- Motors from 7.5 – 22kW
- Outputs from 500 – 6000kg/hr
- Simple and reliable construction
- Easy to maintain
SKIOLD Hammer Mills

- Suck and blow Hammer Mills
- Three models available: mDm-2 / DM-3 / BM-5
- 5.5 up to 37kw motor sizes
- Simple robust construction
- Capacities up to 2500kg/hr
- Conveying capacity up to 80 metres
- Comprehensive range of accessories

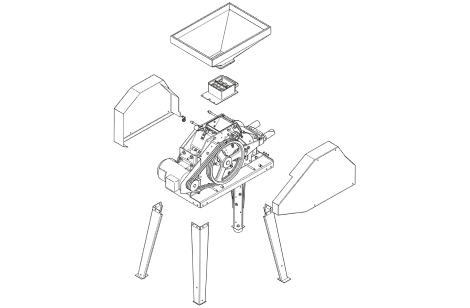

Roller / Crusher / Bruiser Mills

X

SKIOLD Roller MillShow Full Screen

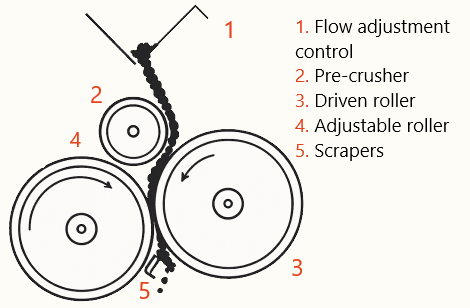

Triple roller principleShow Full Screen

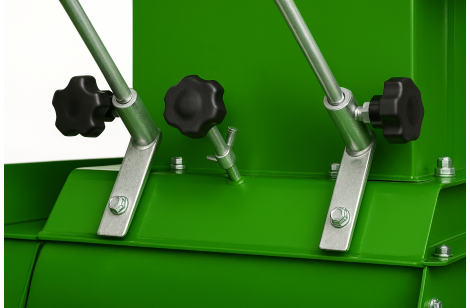

Simple adjustment of roller pressureShow Full Screen
Inlet magnet separatorShow Full Screen
4030 / 7530 3 Roller MillShow Full Screen
- For the crushing of dry grains, peas & beans
- Both Twin Roller & Triple Roller models available
- Triple rollers used for pre crushing of peas & beans
- 3-Phase 4Kw or 7.5Kw motor options and Single-Phase 3.7Kw motor
- 160mm wide or 300mm wide rollers
- Simple robust construction
- Capacities up to 2500kg/hr
- Inlet magnet separator included
