BM Storage Silos
Danagri-3S Ltd are UK agents for the popular range of galvanized steel silos manufactured by BM in Denmark. Specialist in galvanised steel storage with square and rectangular modular silos suitable for seeds, feeds, meals, pellets, plastics etc. Can be used both indoor and outdoor, with a choice of hopper bottoms to suit various materials characteristics. Available with 45 degree, 60 degree or auger discharge. Volumes range from 0.14 up to 86 cubic metres as standard. The silos come in kit form, flat packed in crates for ease of transportation with stainless steel options are also available.
Key features include:
- Modular Design for flexible configurations and easy on-site assembly, even in existing buildings with limited access.
- Space Efficiency: Square and rectangular designs optimize storage capacity within a given area.
- Galvanized Steel Construction for durability, longevity, and good internal hygiene.
- Various Discharge Options: Including 45° and 60° hopper bottoms, as well as auger discharge systems, to suit different materials and flow characteristics.
- Customisation to specific needs with options for dimensions, materials, and accessories.
- Kit Form Delivery delivered as compact, stackable kits, reducing shipping costs and environmental impact.
- High Hygiene Standards with smooth internal surfaces and resistance to high-pressure cleaning.
- Integration with Processing Systems as part of larger grain processing or industrial plants.
BM are a superb family company with over 50 years experience, who have about 1000 standard silo sizes available. Their computerized machinery can make and pack usually within short lead times. We also offer a range of accessories to go with the silos such as slide gates, inspection doors, weighing options, outlet transitions, filters, cyclones, ladders and catwalks. We offer you the choice of buying a silo to put up yourself or we can price you to install it as well.
Agrosilo
BM Agrosilo with 60 degree hopperShow Full Screen
BM Agrosilos with 45 & 60 degree hoppersShow Full Screen
BM Agrosilo with inlet pipe and filtersShow Full Screen
- The basic range of flat top silos for indoor use
- 6 different width dimensions, 1050 x 1050 to 3000 x 3000
- Heights 1.2m to 7.9m
- Volume 0.14 to 51.75 cubic metres
- 45 and 60 degree hopper bottoms
- Designed for material with specific weight up to 780kg/m³
- Pneumatic injection system with filter box and filter available
- Rectangular and partition versions available.
Modular Silo - Indoor
BM Modular SilosShow Full Screen
BM Silos in a feed millShow Full Screen
We can offer different outlet heightsShow Full Screen
BM silos on weigh cells with auger dischargeShow Full Screen
BM silos with laddersShow Full Screen
- Flat top for indoor use
- 7 different width dimensions, 1050 x 1050 to 3500 x 3500
- Heights 1.52m to 12.4m
- Volume 0.24 to 86.35 cubic metres
- 45, 60 degree & auger discharge hopper bottoms
- Designed for specific weight 650kg/m³ or 900kg/m³
- Pneumatic or conveyor fill
- Rectangular and partition versions available.

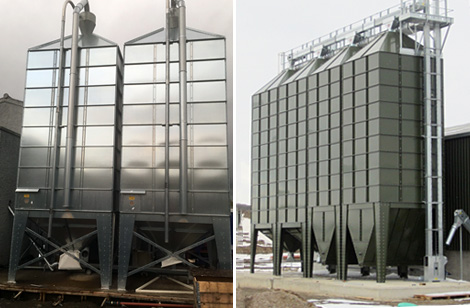

Modular Silo - Outdoor
BM Silos with access ladder & catwalkShow Full Screen
BM Silos with optional painted finishShow Full Screen
Blower fill or conveyor fillShow Full Screen
BM silo for wood pelletsShow Full Screen
Different outlets availableShow Full Screen
- Cone top for outdoor use
- 6 different width dimensions, 1050 x 1050 to 3000 x 3000
- Heights 1.52m to 12.4m
- Volume 0.24 to 86.35 cubic metres
- 45, 60 degree & auger discharge hopper bottoms
- Designed for specific weight 650kg/m³ or 900kg/m³
- Pneumatic or conveyor fill
- Rectangular and partition versions available.
Auger Discharge Silo
BM Auger Discharge Silos with extension legsShow Full Screen
BM Auger Discharge Silos with laddersShow Full Screen
Silo with 4x agitators for wood chipShow Full Screen
Silos in Feed Mill with agitatorsShow Full Screen
Auger discharge silo with conveyorShow Full Screen
- For material with poor flow characteristics
- 6 different width dimensions, 1050 x 1700 to 3000 x 3650
- Heights 1.39m to 9.61m
- Volume 0.34 to 63.37 cubic metres
- U trough bottom with Ø152 or Ø250mm discharge auger
- Or new twin discharge auger or conveyor base options
- Designed for specific weight 650kg/m³
- Can be fitted with a range of agitators.
Clean Silo
Smooth sides for total clean outShow Full Screen
Clean Silo with stronger side platesShow Full Screen
- For total cleanout of product in Seed & Feed plants
- No internal braces, shorter and stronger sidewall plates
- 6 different width dimensions, 1050 x 1050 to 3147 x 3147
- Heights 1.25m to 10.26m
- Volume 0.25 to 66.93 cubic metres
- 45 and 60 degree hopper bottoms
- Designed for material with specific weight up to 900kg/m³.
Asymetric silo
- Designed ideally for gantry mounting
- Three models, AS-125, AS-250 and AS-300
- Heights 3.77m, 6.49 and 7.82m
- Volume 3.56, 25.3 and 44.74 cubic metres
- Assymetrical hopper bottom
- Designed for material with specific weight up to 780kg/m³.
Rectangular silos
- In both Agrosilo and Standard Modular types
- 7 different models
- Dimensions from 1050 x 1550, up to 3000 x 4000
- Heights 1.51m up to 9.52m
- Volume 0.60 to 83.26 cubic metres
- Designed for material with specific weight up to 650kg/m³
- Often used as ‘wet bins ‘ to load grain driers
Silo accessories
BM Silofabrik offer a wide range of accessories for their silos including bespoke ladders, railings and catwalks.
There is a weighing system available, pneumatic filling equipment, inspection doors, safety valves, corner inserts as well as a great range of transition pieces and other fittings.
